Retail Grid Assembly Instructions

How to set up the Grid

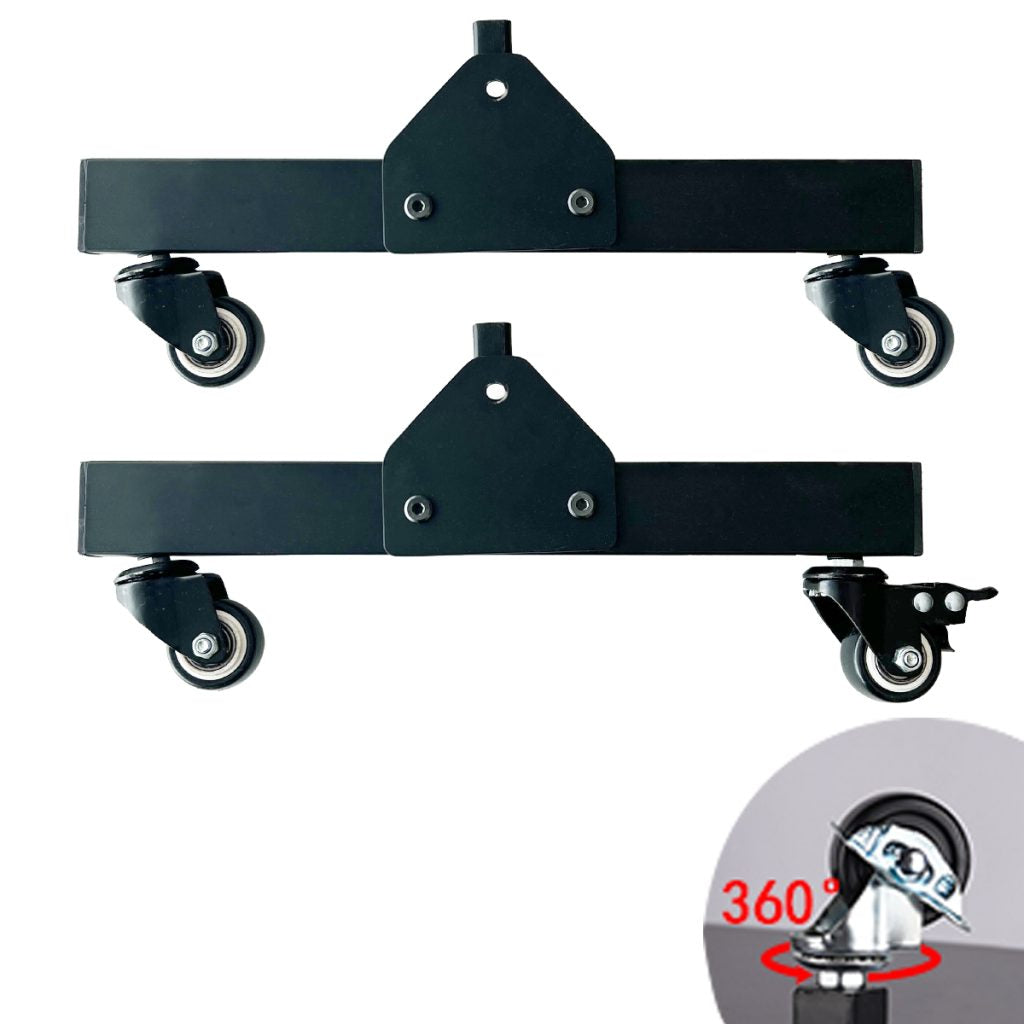

Step 1:
Attach the wheels to the legs by twisting them
into place. Ensure one leg in each pair has a
brake while the other does not, and make sure
the brakes on both wheels in each pair are
aligned on the same side.

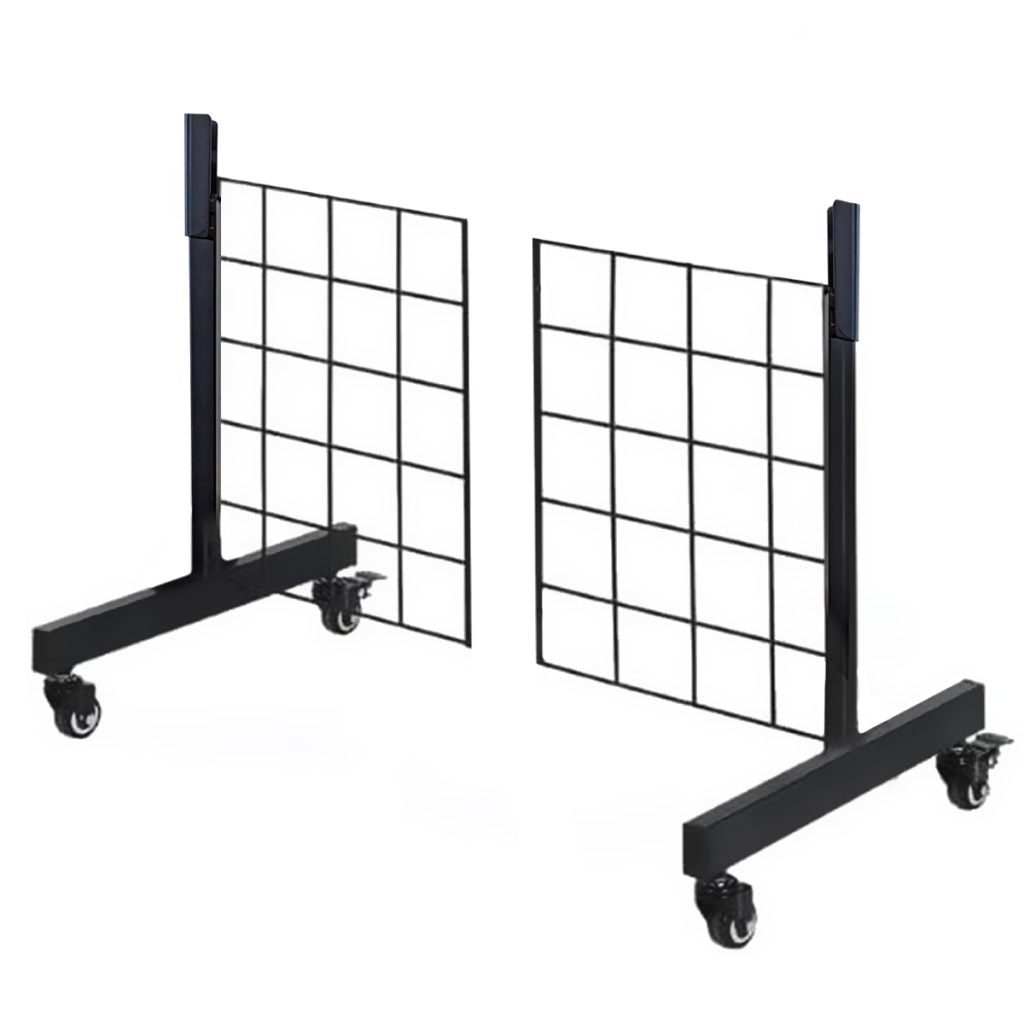

Step 2:
Insert the bottom two panels into the legs.
Please pay attention to the installation
direction of the two panels as shown in
the picture.

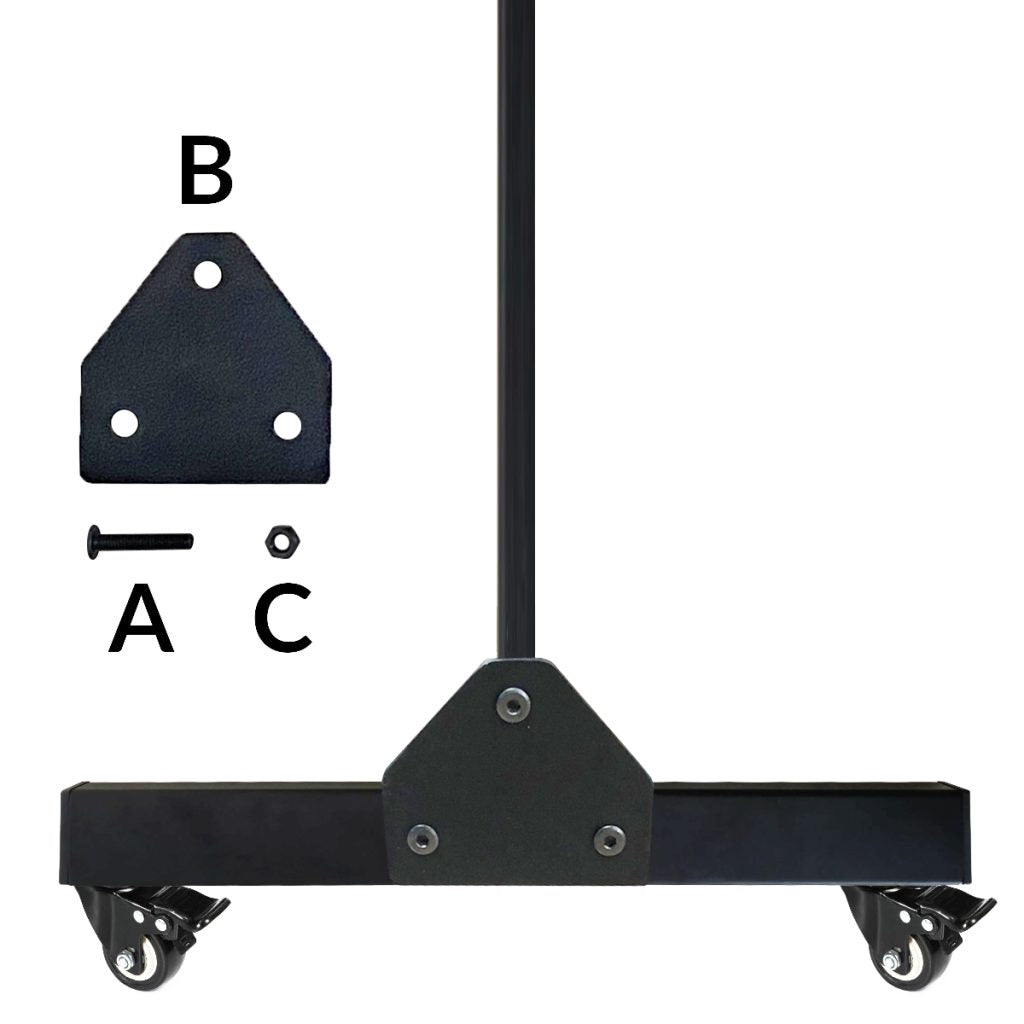

Step 3:
Secure the legs and the panels with the
triangular-connectors and bolts.
(A*3, B*1, C*3)

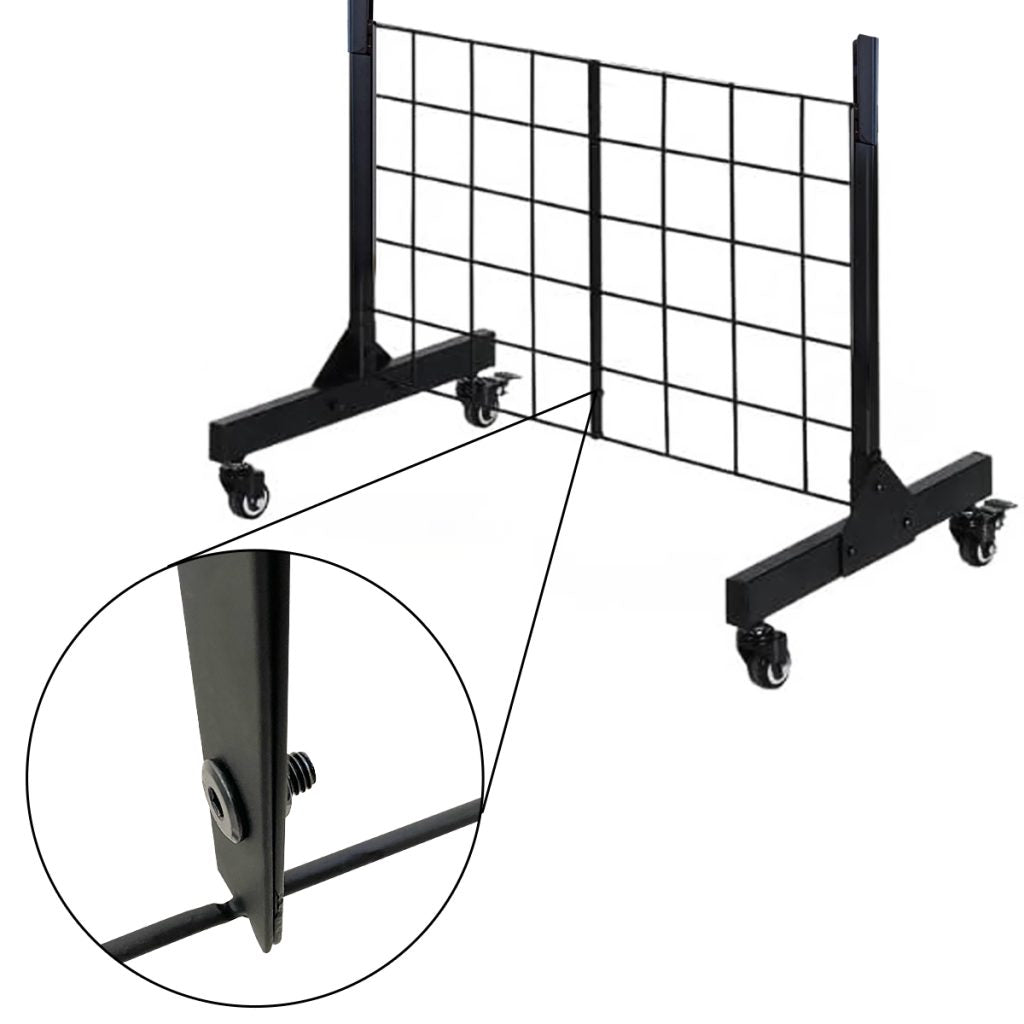

Step 4:
Insert a bolt through the lowest holes in the
middle of the panels. Please refer to the
picture below and note the direction of
the bolt

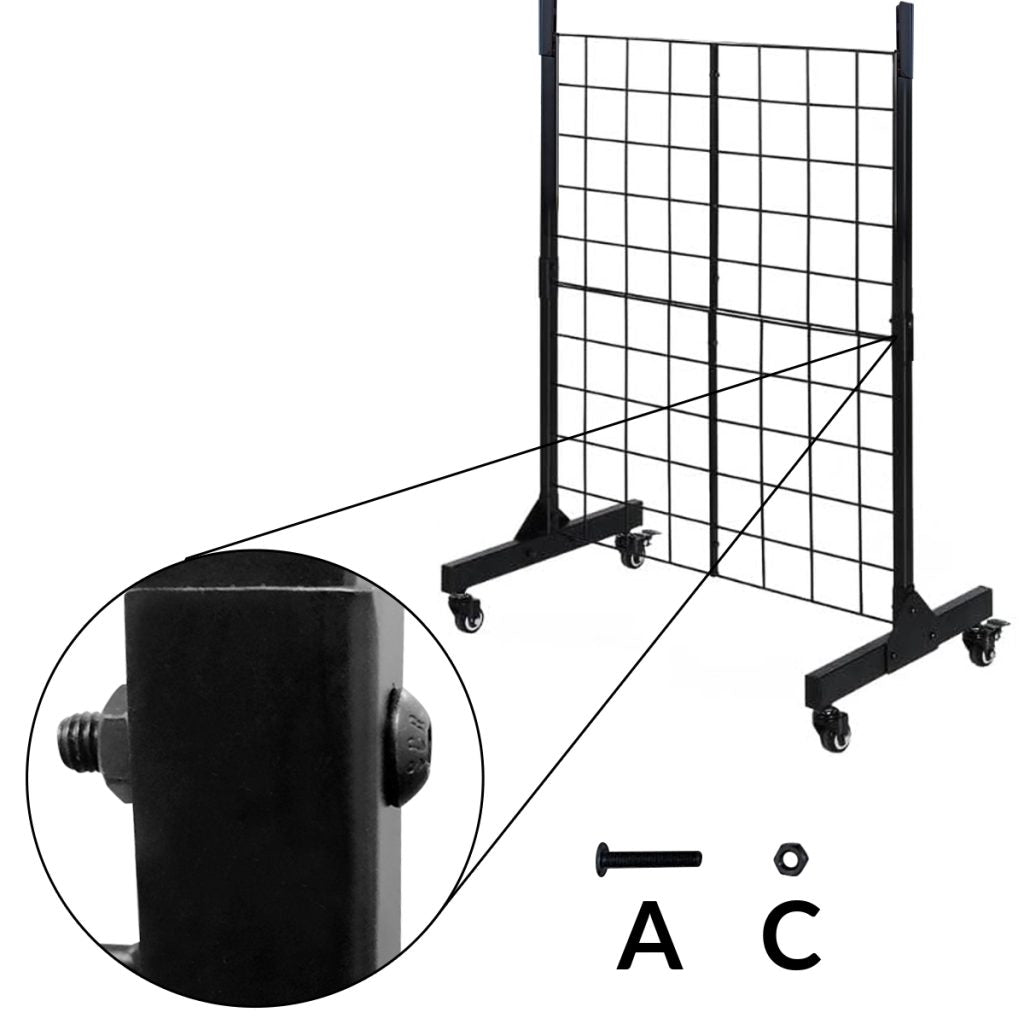

Step 5:
Insert the next panel and tighten it with the
bolts on the sides. Please note that the bolts
should be tightened from the outside
towards the inside.

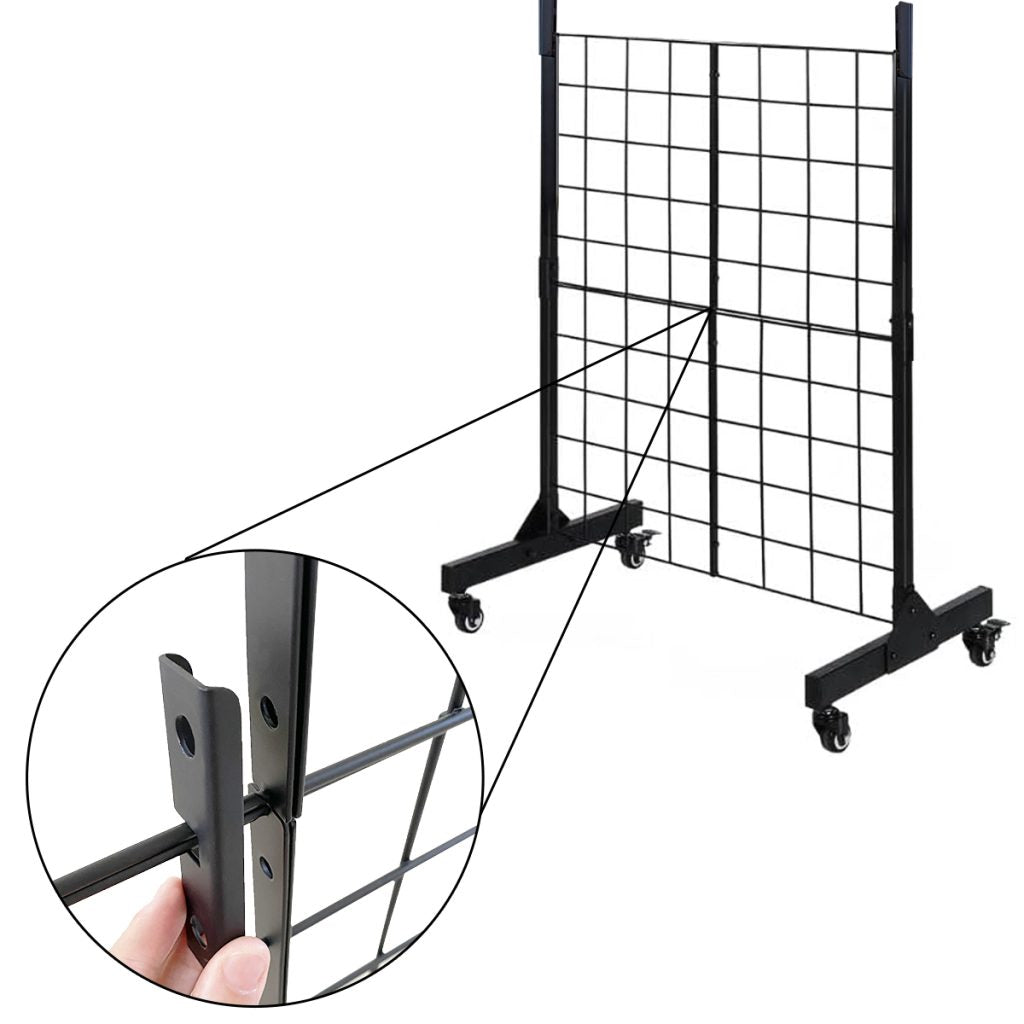

Step 6:
Align the middle sections of the panels by
adding a rectangular-connector. Please ensure
the installation direction of the
rectangular-connector matches the picture.

Step 7:
Tighten the parts from the previous step
with the bolts.”

Step 8:
Repeat the process until the last panels
are secured!
